Product Overview The VOLTAPURE VP12-100Ah is a high-capacity 12V 100Ah VRLA AGM battery for large UPS banks, telecom systems, inverter applications, and industrial standby power. Its T16 copper terminal, very low internal resistance, 800A five-second discharge limit, and ten-year design float life support critical backup installations requiring substantial stored energy.

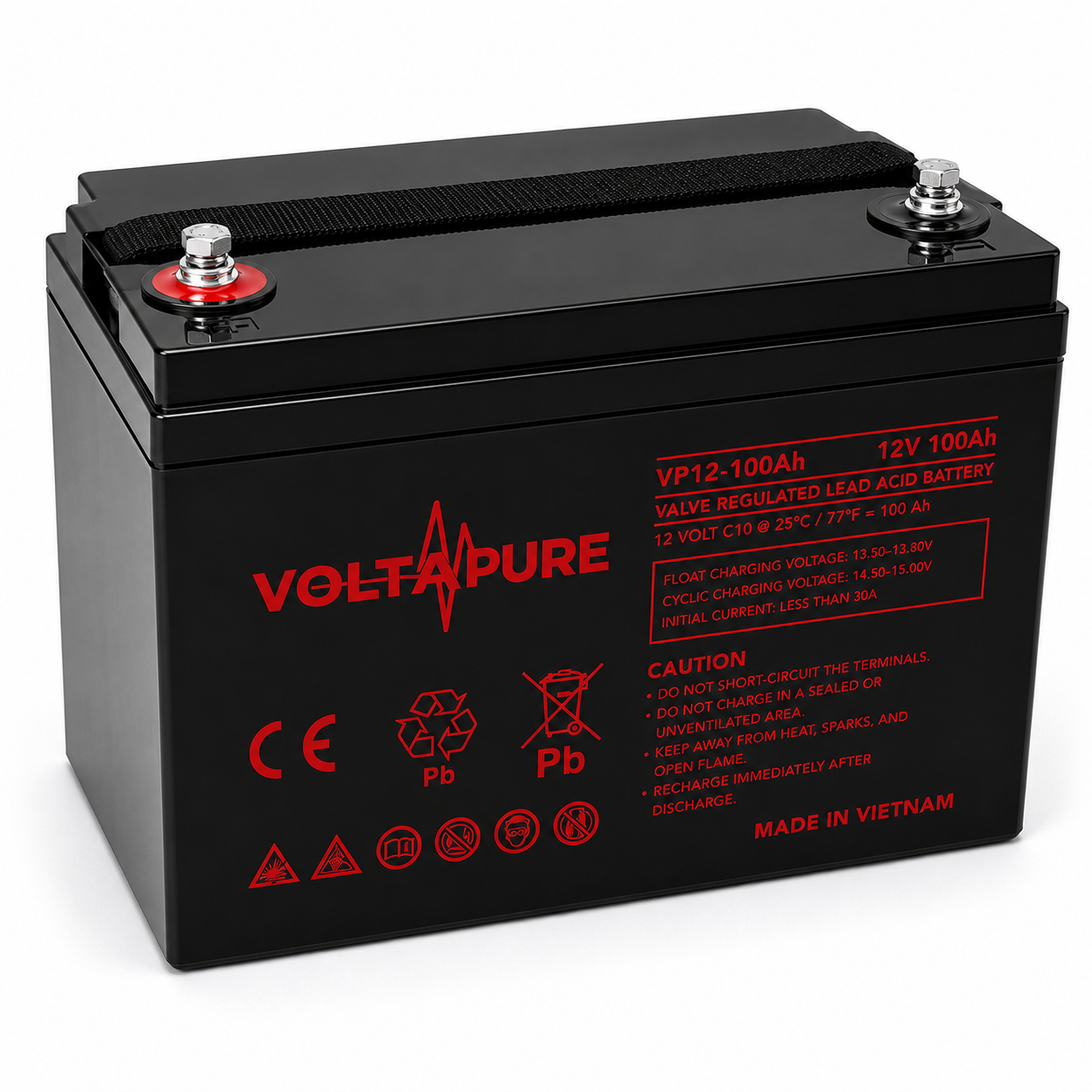

VOLTAPURE 12V 100Ah VRLA AGM Rechargeable Battery
SKU: VP12-100Ah
EGP 11,195.00Price
- • Battery technology: Rechargeable valve-regulated lead-acid (VRLA), AGM type • Nominal voltage: 12V • Rated capacity: 100Ah at the 20-hour rate • Capacity at stated rates: 20HR: 100Ah; 3HR: 75Ah; 1HR: 55Ah • Terminal type: T16 copper terminal • Internal resistance: Approx. 4.5 mOhm, fully charged at 25 degrees C • Dimensions (L x W x H / TH): 331 x 173 x 213 / 223 mm • Approx. weight: 29.50 kg, tolerance +/-3% • Maximum charging current: 30A • Maximum discharge current: 800A for 5 seconds • Float charging voltage: 13.50-13.80V at 25 degrees C; compensation -18mV/degree C • Cyclic charging voltage: 14.50-15.00V at 25 degrees C; compensation -30mV/degree C • Nominal operating temperature: 25 degrees C +/-3 degrees C • Operating temperature range: Discharge: -15 to +50 degrees C; charge: -10 to +50 degrees C; storage: -20 to +50 degrees C • Capacity by temperature: 40 degrees C: 102%; 25 degrees C: 100%; 0 degrees C: 85%; -15 degrees C: 65% • Self-discharge at 25 degrees C: Remaining capacity: 91% after 3 months; 82% after 6 months; 65% after 12 months • Designed float life: 10 years at 20 degrees C under specified float conditions • Construction: Lead-dioxide positive plate, lead negative plate, ABS container and cover, AGM separator, sulfuric-acid electrolyte, rubber safety valve, copper terminal
- • 100Ah capacity at the 20-hour rate for high-capacity standby installations. • Ten-year design float life at 20 degrees C under specified conditions. • T16 copper terminal supports secure, low-resistance project connections. • Very low 4.5 mOhm internal resistance supports high-rate current delivery. • 800A five-second maximum discharge current for short peak loads within specification. • 30A maximum charging-current specification supports controlled charger design. • AGM VRLA construction is sealed and requires no routine electrolyte top-up. • Defined charge, temperature, and self-discharge data support professional battery-bank engineering.
- • Large UPS battery banks • Telecom and communications infrastructure • Inverter backup systems configured for VRLA AGM batteries • Industrial standby-power systems • Critical emergency-power and control installations
- • High 100Ah capacity reduces the number of parallel batteries required compared with smaller-capacity blocks when the system is correctly engineered. • The T16 copper terminal and 4.5 mOhm internal resistance support secure, efficient higher-current connections. • A published 800A five-second limit gives clear short-duration performance guidance for demanding backup loads. • Ten-year design float life and comprehensive OEM data offer a stronger documented proposition than generic high-capacity batteries with limited specifications. • VOLTAPURE provides local availability and support from Maamoon Est. in Egypt for project selection and supply.
